RMS 205 (LMR) Media Testing

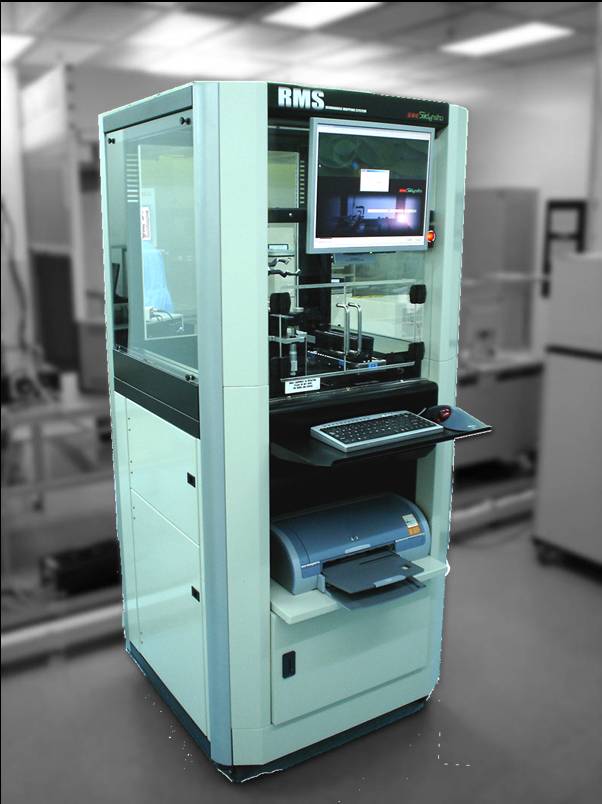

Remanence Measurement System 250 (RMS 250), provides a fast and accurate measurement of the remanence thickness product (Mr*t), coercieve squareness (S*), and remanent coercivity (Hcr) of the magnetic layer of magnetic disk media. 32 sectors (with 3 tracks in each sector) are measured on each side of the disk in approximately 35 seconds.

The system is fully automated and capable of high-throughput quality control testing of magnetic disk media. The system can handle either individual disk or an entire standard 25-disks cassette. Users can customize the test sequence through the system's operating software. Various chucks and heads are available for respective disk sizes.

The System is equipped with user-friendly graphical interfaces which provide flexibility to usage by different user groups such as operators, technicians and engineers. Analytical and diagnostic tools are also available to provide insight into the sputtering process.

• High speed mapping for whole disk on both sides
• High repeatability and high accuracy
• Full analysis capability of Mr*t, HcR, S* on disk media
• Non-destructive and non-contact measurement
• Fully automated robot handling system for standard industry cassettes operation.
• Microsoft® Excel processed detailed results crucial for research and development to perfect the sputtering process
• User friendly and easy to understand Graphical User Interface (GUI) for easy system operation
• User configurable operation condition for levels of control
• 2 sides, 3 tracks on each side and 32 sectors per track; provides 192 sectors of data map

Dimensions

Size (in mm)	:	970W x 800D x 1800H
Weight (in KG)	:	200

Operating Environment Requirements

Operating Environment	:	Cleanroom Class 1,000 or better
Temperature Range	:	20°C ± 2°C (68°F ± 3.6°F)
Relative Humidity	:	70% and below, Non-condensing

Electrical Requirements

Input Voltage	:	208VAC, 8A, Single Phase, 3-wire configuration
Frequency	:	50/60Hz
Input Connection	:	3-meter line cord with 208VAC, 8A BS1363 plug

Air Input Requirements

High Pressure Air (HPA)	:	Clean, dry air at 0.55 ± 0.05 MPa
Incoming Air Inlet	:	Ø6mm tubing
Disk Vaccum Setting	:	-50kPa
